FB 3: Your Smart Line for High Performance

Nilpeter FB 3: Your Smart Line for High Performance

The FB-3 represents the latest technology integrated into a new, ground-up designed platform. The ergonomically designed printing stations each includes 5 servos for complete automation of all adjustments including job save, job load, and job change, as well as pre-setting, impression settings, and side register load.

The dual axis servo transport system ensures that the FB-3 will continually deliver the highest level of print reproduction, as well as unparalleled registration performance. Other features include Nilpeter’s CLEANINKING system, quick-release anilox rollers, and plate cylinders, which – when combined with the Revolver die-cutting system, or the Quick-Change Die Unit – makes the FB-3 a natural addition to any lean printing environment.

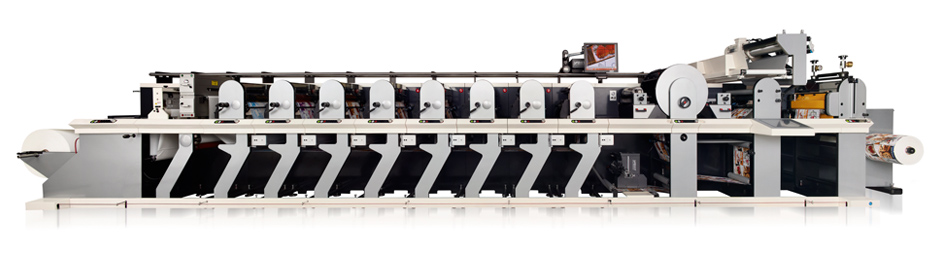

FB-3_Whole_mirror



Specifications

FB-3
Press speed 228 m/min. mechanical speed
(750 FPM)
Web mm (feet/inches)
Unwind diameter 1.016 mm (40”), max. 350 kg
Rewind diameter 1.016 mm (40”), max. 350 kg
Waste rewind diameter 1.016 mm (40”), max. 40 kg
Printing mm (feet/inches)
Web width, max. 350 mm (13 3/4”)
Printing width, max. 350 mm (13 3/4”)
Die-cutting width, max. 350 mm (13 3/4”)
Flexo, repeat length 190,5-635 mm (7 1/2”-25”)
Screen, repeat length 304,8-457,2 mm (12”-18”)
Die-cutting repeat length
(conventional)
203,2-609,6 mm (8”-24”)
Hot foil repeat length 254-457,2 mm (10”-18”)
