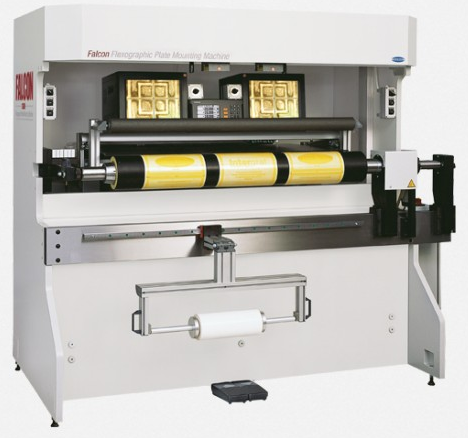

Flexotech FALCON

Robust steel side frames with steel cross beams and precision linear rails. Pneumatic fittings serve to ease the operation of the unit. Large colour displays show the exact position of each camera. The measurement system has a 20 base position memory. Division of the circumference for mounting more plates on the face is done with the pneumatic dividing disc. Print repeat: up to 1250 mm; Face/sleeve width: up to 1700 mmMachine pour le montage de clichés flexographiques sur cylindres et/ou manchons pour imprimeuses avec ou sans pignons dans l’industrie de la pré-impression, équipée de caméras et axe motorisés ainsi que du logiciel VIS (brevet Virtual Information System)

FLEXOTECH FALCON

Robust steel side frames with steel cross beams and precision linear rails. Pneumatic fittings serve to ease the operation of the unit. Large colour displays show the exact position of each camera. The measurement system has a 20 base position memory. Division of the circumference for mounting more plates on the face is done with the pneumatic dividing disc. Print repeat: up to 1250 mm; Face/sleeve width: up to 1700 mmMachine pour le montage de clichés flexographiques sur cylindres et/ou manchons pour imprimeuses avec ou sans pignons dans l’industrie de la pré-impression, équipée de caméras et axe motorisés ainsi que du logiciel VIS (brevet Virtual Information System)

Sleeve type
Like the sleeves, the bridge sleeve is pulled on the built-in air mandrel.
The sturdy sleeve arm system is integrated in the left side frame of the machine.
Opening and closing of the arm is done pneumatically.

Universal type
The universal mounting machine is suitable for sleeve change on fixed air mandrel, together with conventional plate cylinder reception as well. The universal mounting machine has two lead on rail unit, which allow comfortable and safe plate cylinder handling. Shaft lift unit for raise up plate cylinders shafts from shaft support axle, as well as for place back. Unit functioning is fully pneumatic.

Standard type
The standard mounting machine is suitable for traditional plate cylinder reception as well.
The mounting machine has two lead on rail unit, which allow comfortable and safe plate cylinder handling. Shaft lift unit for
raise up plate cylinders shafts from shaft support axle, as well as for place back. Unit functioning is fully pneumatic.
